Chemical compatibility is checked against the medium before the assembly is cut, and every assembly leaves with its test record. A hose that fits is not the same as a hose that lasts.

BORE: DN10 to DN150
LENGTH: to 20 m
PRESSURE: to 25 bar
TEMPERATURE: -30 to +200 °C

Families in this group

What sits under the heading.

PTFE-lined hose
EPDM chemical hose
Composite hose
Steam hose
Food-grade hose
Camlock couplings
DIN 11851 fittings
Clamp fittings
Hose safety systems

Part numbers in this group

The variants behind the two series above.

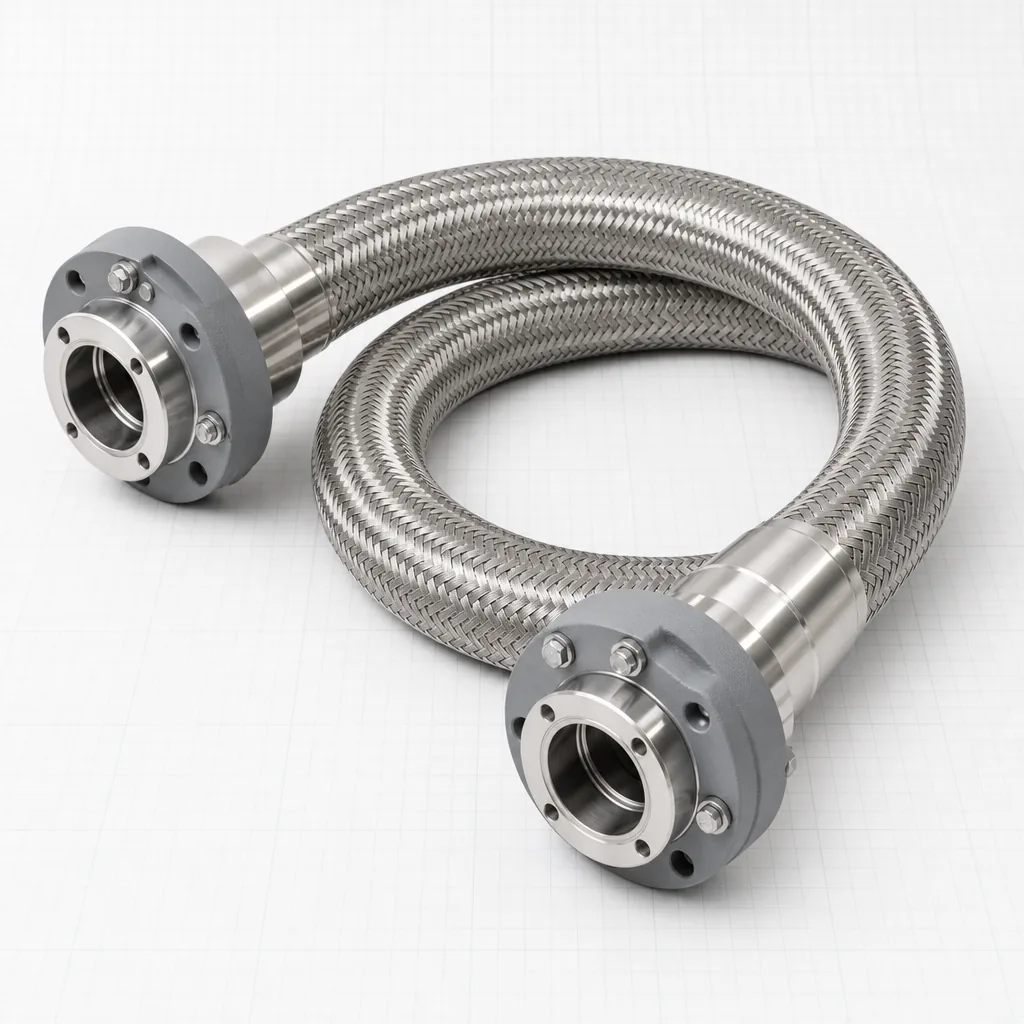

HA-120, Hose assembly

PART NUMBER	BORE	LENGTH	ENDS	PRESSURE
VQ-HA120-10	DN25	2 m	Camlock	to 25 bar
VQ-HA120-20	DN50	5 m	Clamp	to 25 bar
VQ-HA120-30	DN100	10 m	Flanged	to 25 bar

HA-240, Hose assembly

PART NUMBER	BORE	LENGTH	ENDS	PRESSURE
VQ-HA240-10	DN50	3 m	Camlock	to 16 bar
VQ-HA240-20	DN80	6 m	Camlock	to 16 bar
VQ-HA240-30	DN150	10 m	Flanged	to 16 bar

HA-330, Hose assembly

PART NUMBER	BORE	LENGTH	ENDS	PRESSURE
VQ-HA330-10	DN50	6 m	Camlock	to 14 bar
VQ-HA330-20	DN100	10 m	Camlock	to 14 bar
VQ-HA330-30	DN200	20 m	Flanged	to 14 bar

HA-420, Hose assembly

PART NUMBER	BORE	LENGTH	ENDS	PRESSURE
VQ-HA420-10	DN19	3 m	Crimped	to 18 bar saturated steam
VQ-HA420-20	DN25	6 m	Crimped	to 18 bar saturated steam
VQ-HA420-30	DN50	10 m	Safety clamped	to 18 bar saturated steam

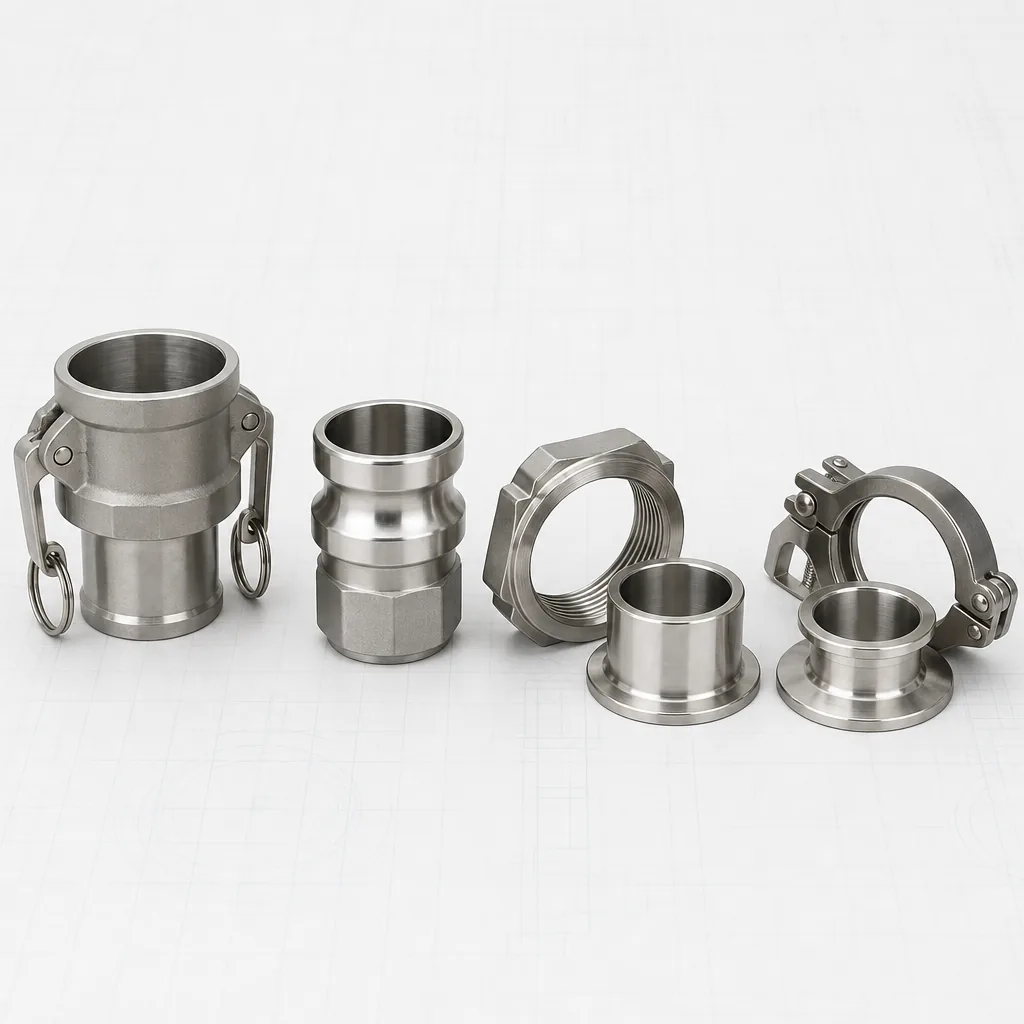

CO-110, Coupling and fitting

PART NUMBER	SIZE	TYPE	SEAL	MATERIAL
VQ-CO110-10	DN25	Type C coupler	EPDM, NBR, FKM or PTFE	1.4408
VQ-CO110-20	DN50	Type E adaptor	EPDM, NBR, FKM or PTFE	1.4408
VQ-CO110-30	DN100	Type F adaptor	EPDM, NBR, FKM or PTFE	1.4408

CO-220, Coupling and fitting

PART NUMBER	SIZE	TYPE	SEAL	MATERIAL
VQ-CO220-10	DN25	Liner and nut	EPDM, silicone or PTFE	1.4404
VQ-CO220-20	DN50	Liner and nut	EPDM, silicone or PTFE	1.4404
VQ-CO220-30	DN100	Liner and nut	EPDM, silicone or PTFE	1.4404

CO-330, Coupling and fitting

PART NUMBER	SIZE	TYPE	SEAL	MATERIAL
VQ-CO330-10	DN25	Ferrule pair	EPDM, silicone, PTFE or FFKM	1.4404
VQ-CO330-20	DN50	Ferrule pair	EPDM, silicone, PTFE or FFKM	1.4404
VQ-CO330-30	DN100	Ferrule pair	EPDM, silicone, PTFE or FFKM	1.4404

CO-440, Coupling and fitting

PART NUMBER	SIZE	TYPE	SEAL	MATERIAL
VQ-CO440-10	DN25	Coupler and adaptor	FKM or FFKM	1.4408
VQ-CO440-20	DN50	Coupler and adaptor	FKM or FFKM	1.4408
VQ-CO440-30	DN100	Coupler and adaptor	FKM or FFKM	1.4408

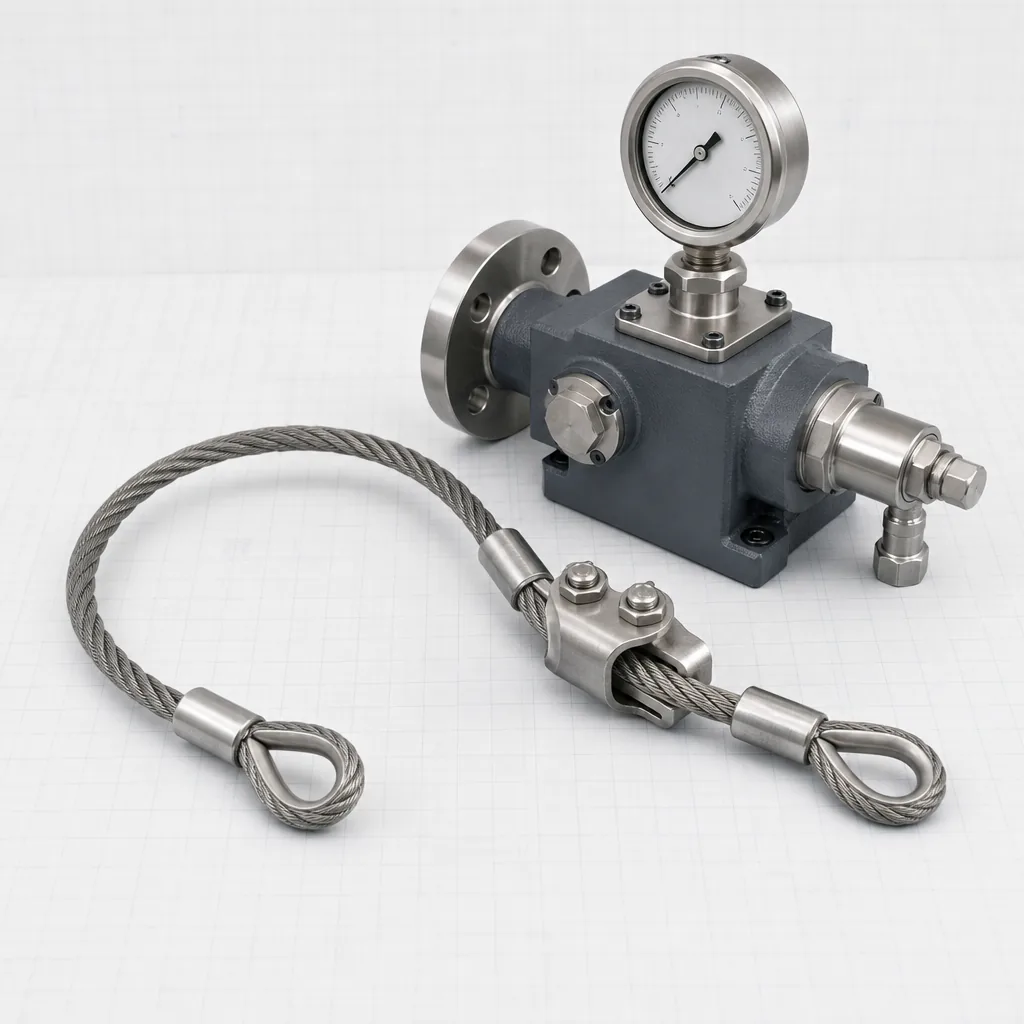

HS-110, Hose safety and test equipment

PART NUMBER	SIZE	RATING	FITTING	MATERIAL
VQ-HS110-10	DN25 to DN50	to 16 bar	Swaged eyes	1.4401
VQ-HS110-20	DN65 to DN100	to 25 bar	Swaged eyes	1.4401
VQ-HS110-30	DN125 to DN200	to 25 bar	Swaged eyes	1.4401

HS-220, Hose safety and test equipment

PART NUMBER	SIZE	RATING	FITTING	MATERIAL
VQ-HS220-10	DN19	to 18 bar	Two bolt	1.4301
VQ-HS220-20	DN50	to 18 bar	Two bolt	1.4301
VQ-HS220-30	DN100	to 16 bar	Four bolt	1.4301

HS-330, Hose safety and test equipment

PART NUMBER	SIZE	RATING	FITTING	MATERIAL
VQ-HS330-10	40 x 20 mm	—	Banded	1.4301
VQ-HS330-20	60 x 25 mm	—	Banded	1.4301
VQ-HS330-30	80 x 30 mm	—	Banded	1.4301

HS-440, Hose safety and test equipment

PART NUMBER	SIZE	RATING	FITTING	MATERIAL
VQ-HS440-10	Single assembly	1.5 times working	At our works	1.4301
VQ-HS440-20	Site visit, to 50 assemblies	1.5 times working	On site	1.4301
VQ-HS440-30	Annual contract	1.5 times working	On site	1.4301

Next step

Send the duty for this group.

For hose and fittings we need bore, length, pressure, temperature. That is enough for a first selection.
