Process Equipment
Heat exchangers, agitators, static mixers, sight glasses and the vessel fittings that finish a skid.
The filters on this page are part of the design. Nothing is wired to a product database, so the result set does not change.
Process Equipment across the range.
The equipment that is specified last and holds up the build. Held in stock in the common sizes and quoted with the thermal or mixing calculation attached, so the drawing office has a figure to work to before the order is placed.
- HEAT TRANSFER
- 0.5 to 180 m²
- MIXING
- 0.37 to 45 kW
- DESIGN PRESSURE
- 6 to 16 bar
- TEMPERATURE
- -20 to +250 °C
What sits under the heading.
- Shell-and-tube heat exchangers
- Plate heat exchangers
- Top-entry agitators
- Side-entry agitators
- Static mixers
- Sight glasses and lights
- Sample valves
- Tank cleaning heads
- Vessel manways
Two from this group, in full.
Each one carries its specification table, the variant list with part numbers, the options and the datasheet contents.
HX-600
Fixed tube sheet shell-and-tube exchanger in stainless steel, for liquid-to-liquid and steam-to-liquid duty on process and utility systems.

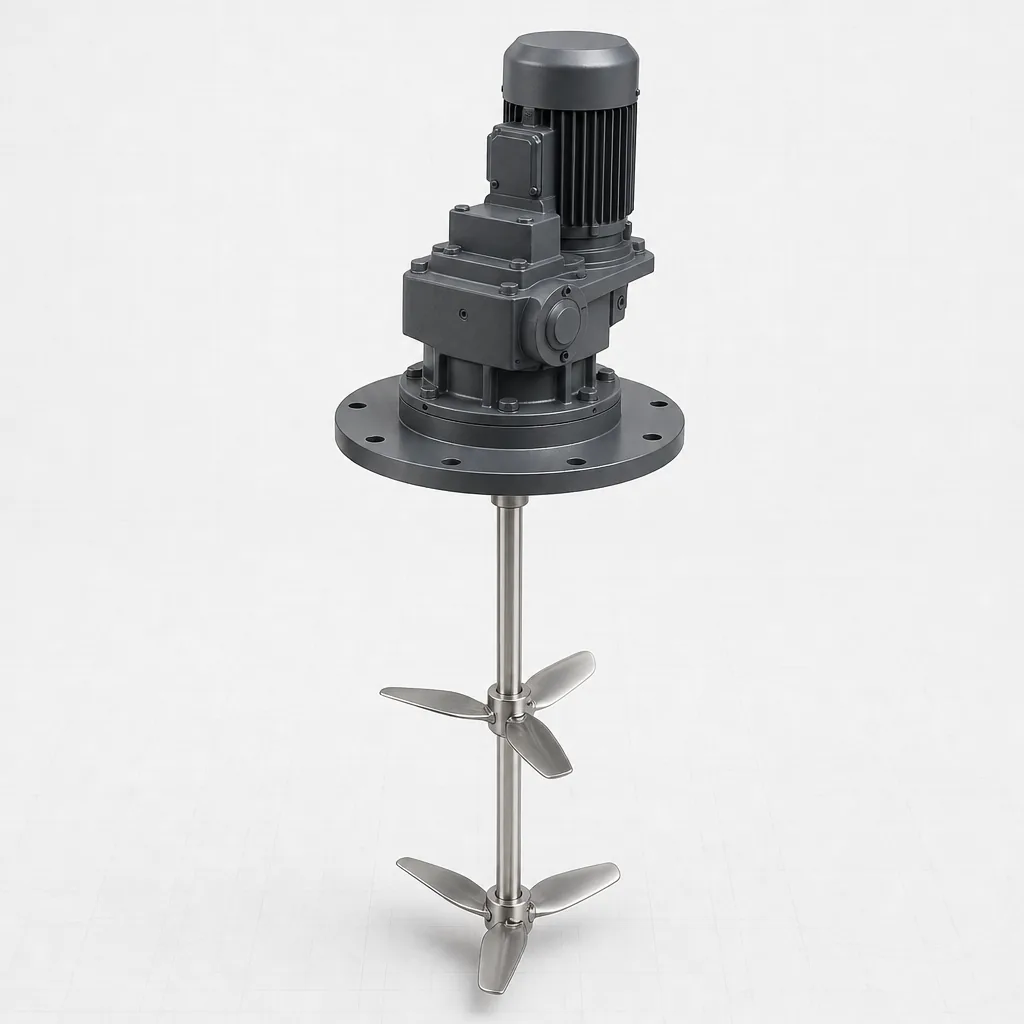

AG-350
Flange-mounted top-entry agitator with a helical bevel gear unit and a hydrofoil impeller set, for blending, suspension and heat transfer duty in vessels from 1 to 40 m³.
The variants behind the two series above.
HX-600, Shell-and-tube heat exchanger
| PART NUMBER | SHELL | SURFACE | TUBE LENGTH | PASSES |
|---|---|---|---|---|
| VQ-HX600-150-20 | DN150 | 2.4 m² | 1,500 mm | Single pass |
| VQ-HX600-200-60 | DN200 | 6.1 m² | 2,000 mm | Two pass |
| VQ-HX600-300-18 | DN300 | 18 m² | 3,000 mm | Two pass |
| VQ-HX600-400-34 | DN400 | 34 m² | 4,000 mm | Two pass |
| VQ-HX600-500-60 | DN500 | 60 m² | 4,000 mm | Two pass |
AG-350, Top-entry tank agitator
| PART NUMBER | POWER | MOUNTING | VESSEL | IMPELLERS |
|---|---|---|---|---|
| VQ-AG350-07-150 | 0.75 kW | DN150 | to 4 m³ | One impeller |
| VQ-AG350-22-200 | 2.2 kW | DN200 | to 10 m³ | One impeller |
| VQ-AG350-75-250 | 7.5 kW | DN250 | to 22 m³ | Two impellers |
| VQ-AG350-18-300 | 18.5 kW | DN300 | to 40 m³ | Two impellers |
Send the duty for this group.
For process equipment we need heat transfer, mixing, design pressure, temperature. That is enough for a first selection.
