Valves
Isolation, control and safety valves in cast iron, carbon steel and stainless, manual or actuated, PN10 to PN40.
The filters on this page are part of the design. Nothing is wired to a product database, so the result set does not change.
Valves across the range.
Control valves are sized on the process data, not on the line size. Send the three flow cases and the inlet and outlet pressures and the selection comes back with a Cv, a trim characteristic, a noise estimate and a cavitation check.
- SIZES
- DN15 to DN600
- PRESSURE
- PN10 to PN40, Class 150 and 300
- TEMPERATURE
- -29 to +400 °C
- ACTUATION
- Manual, pneumatic, electric
What sits under the heading.
- Globe control
- Butterfly, resilient seated
- Butterfly, high performance
- Ball, floating and trunnion
- Gate
- Check
- Diaphragm
- Knife gate
- Pressure reducing
- Safety relief
- Actuators and positioners
Two from this group, in full.
Each one carries its specification table, the variant list with part numbers, the options and the datasheet contents.
GV-200
Top-guided single-seat globe valve with a multi-spring diaphragm actuator and a digital positioner, for modulating control on liquid, gas and steam.

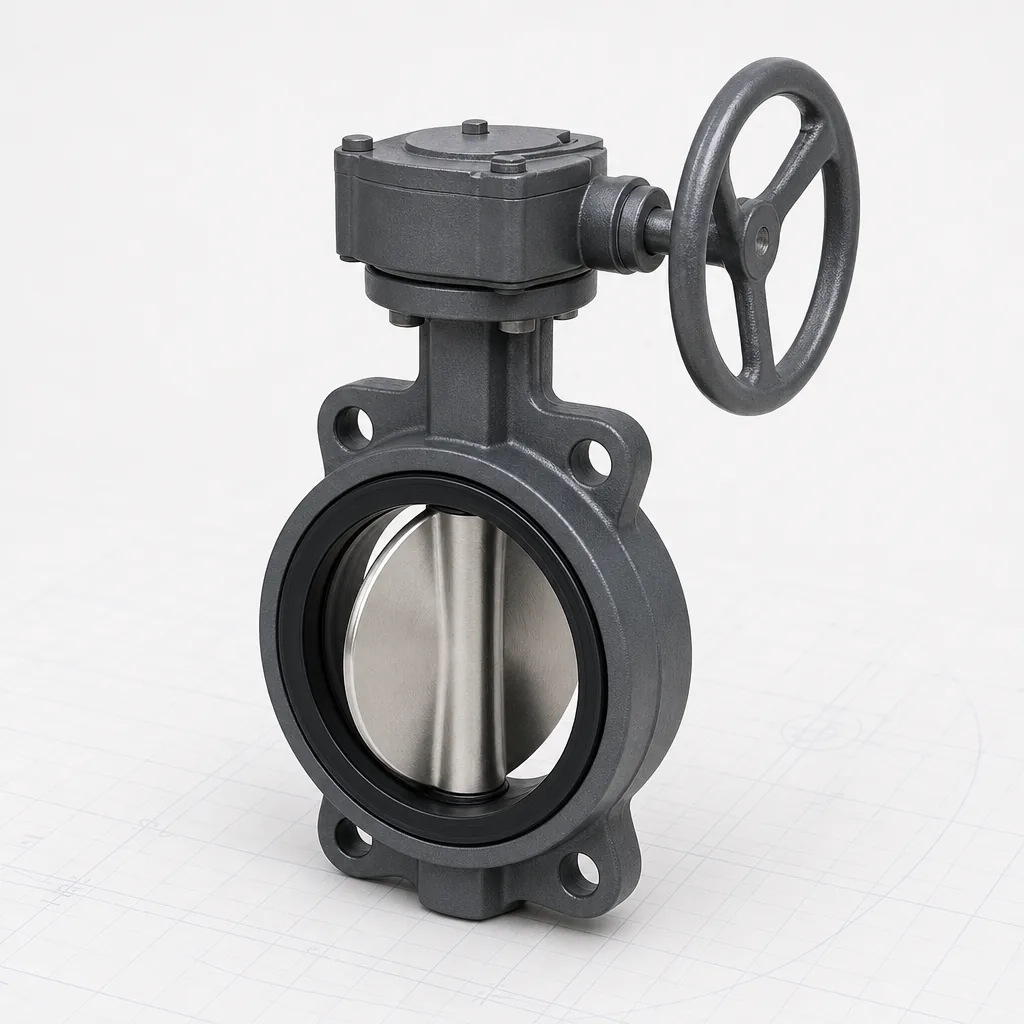

BF-300
Wafer and lugged resilient-seated butterfly valve with a moulded liner, bi-directional and bubble tight to the full rating, for isolation on water, air and neutral media.
The variants behind the two series above.
GV-200, Pneumatic globe control valve
| PART NUMBER | SIZE | FLOW COEFFICIENT | BODY MATERIAL | RATING |
|---|---|---|---|---|
| VQ-GV200-025-S | DN25 | Kvs 10 | 1.4408 | PN40 |
| VQ-GV200-050-S | DN50 | Kvs 40 | 1.4408 | PN40 |
| VQ-GV200-080-S | DN80 | Kvs 100 | 1.4408 | PN16 |
| VQ-GV200-100-C | DN100 | Kvs 160 | WCB | Class 300 |
| VQ-GV200-200-C | DN200 | Kvs 310 | WCB | Class 150 |
BF-300, Resilient-seated butterfly valve
| PART NUMBER | SIZE | BODY STYLE | LINER | OPERATION |
|---|---|---|---|---|
| VQ-BF300-050-W | DN50 | Wafer | EPDM | Lever |
| VQ-BF300-100-W | DN100 | Wafer | EPDM | Lever |
| VQ-BF300-200-L | DN200 | Lugged | EPDM | Gear operator |
| VQ-BF300-300-L | DN300 | Lugged | FKM | Gear operator |
| VQ-BF300-500-L | DN500 | Lugged | EPDM | Gear operator |
Send the duty for this group.
For valves we need sizes, pressure, temperature, actuation. That is enough for a first selection.
