06 / Product group

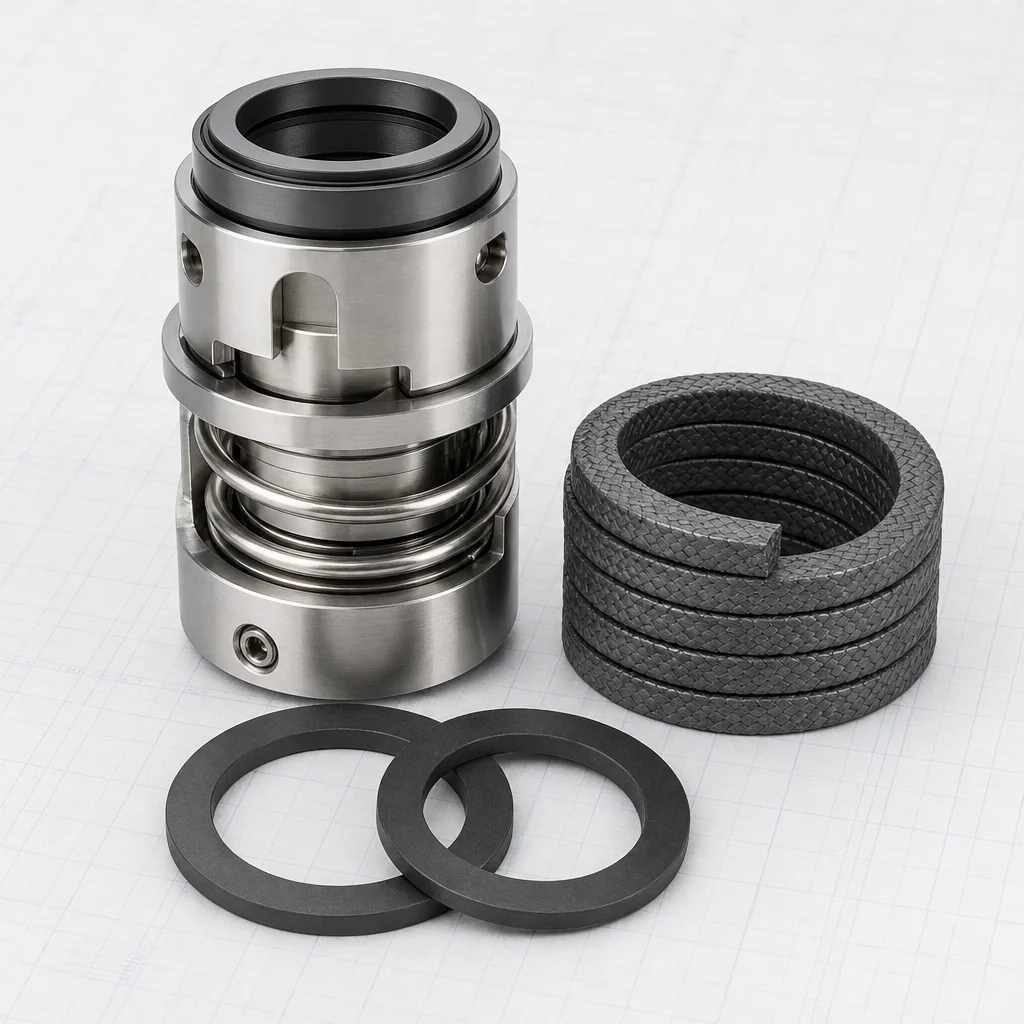

Seals and Gaskets

Mechanical seals, gland packing and gaskets, held against the pump and valve ranges we sell.

REQUEST A QUOTEALL GROUPS
Search and filter this group

Published products.

SEARCH CATALOGUE

ClearSearch and filters run on every published series and part number, read from this site's own product records.

Series SE-120 Component Mechanical Seal
VQ-SE120

SE-120

Mechanical seal, shaft 16 to 100 mm, pressure to 16 bar.

Mechanical seal
Series SE-240 Cartridge Mechanical Seal
VQ-SE240

SE-240

Mechanical seal, shaft 25 to 120 mm, pressure to 25 bar.

Mechanical seal
Series SE-360 Double Cartridge Seal
VQ-SE360

SE-360

Mechanical seal, shaft 25 to 100 mm, pressure to 40 bar.

Mechanical seal
Series SE-480 Hygienic Cartridge Seal
VQ-SE480

SE-480

Mechanical seal, shaft 25 to 80 mm, pressure to 16 bar.

Mechanical seal

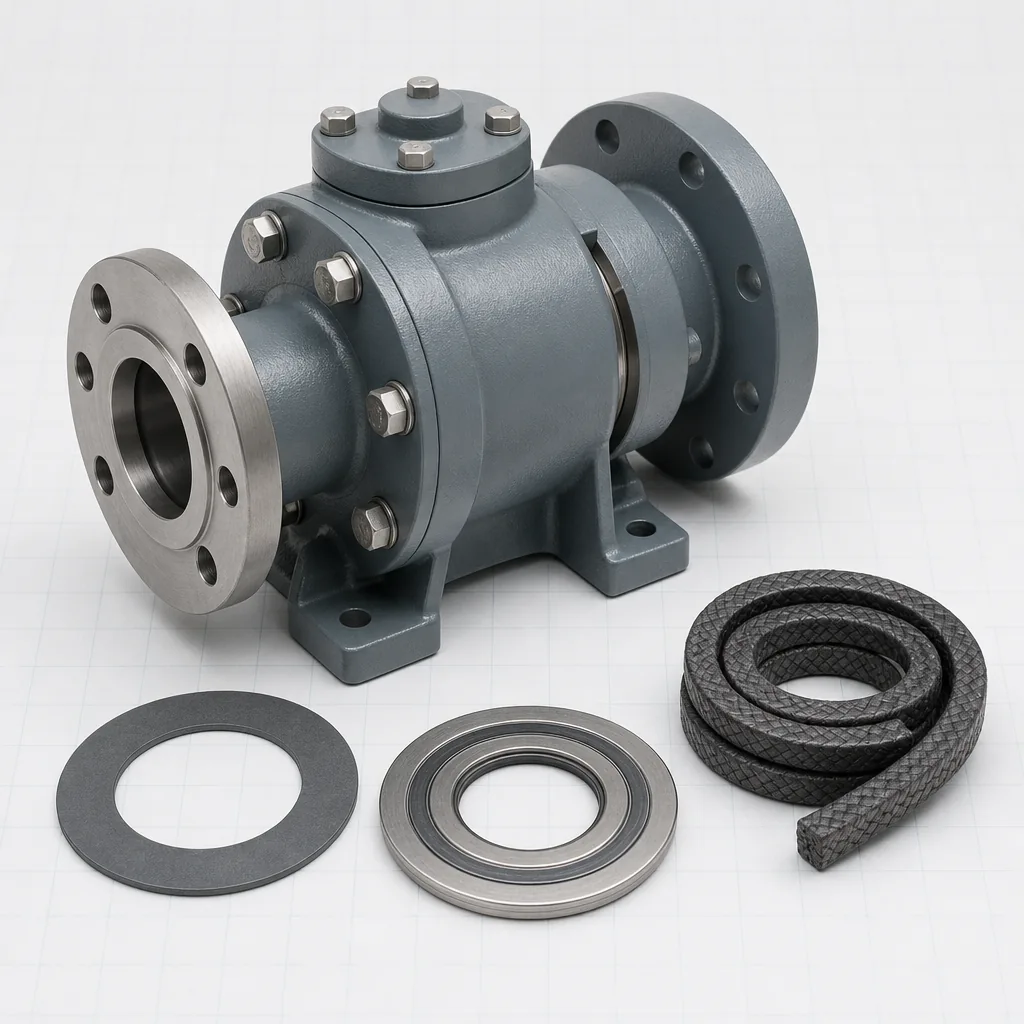

Series GK-110 Graphite Sheet Gasket
VQ-GK110

GK-110

Gasket and packing, sizes DN15 to DN600, rating PN40.

Gasket and packing
Series GK-220 Spiral Wound Gasket
VQ-GK220

GK-220

Gasket and packing, sizes DN15 to DN600, rating PN100.

Gasket and packing
Series GK-330 PTFE Envelope Gasket
VQ-GK330

GK-330

Gasket and packing, sizes DN15 to DN400, rating PN16.

Gasket and packing
Series GK-440 Braided Gland Packing
VQ-GK440

GK-440

Gasket and packing, sizes 5 to 25 mm square section, rating PN25.

Gasket and packing

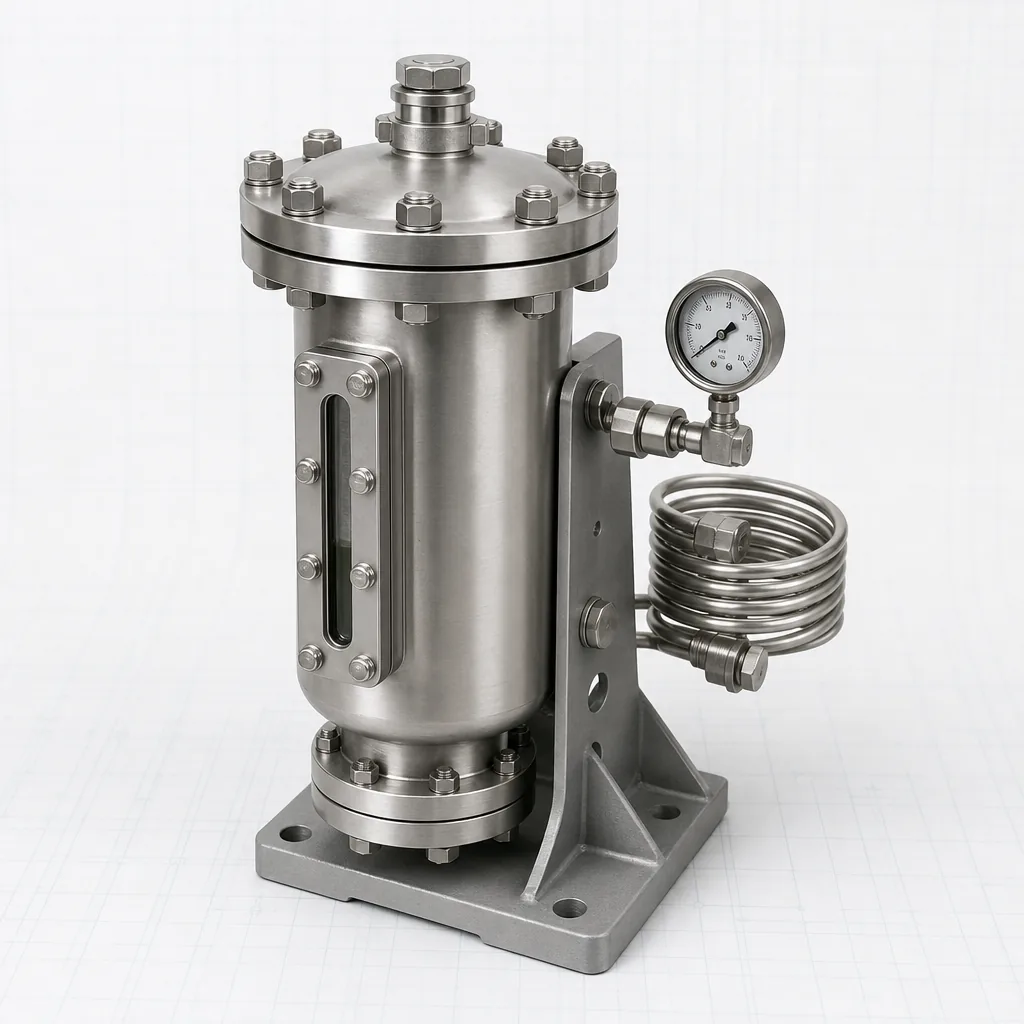

Series SS-120 Barrier Fluid Pot, Plan 52
VQ-SS120

SS-120

Seal support system, volume 3 to 24 litres, pressure 10 bar.

Seal support system
Series SS-240 Barrier Fluid Pot, Plan 53B
VQ-SS240

SS-240

Seal support system, volume 8 to 40 litres, pressure 40 bar.

Seal support system
Series SS-310 Seal Cooler, Plan 23
VQ-SS310

SS-310

Seal support system, volume Not applicable, circulating, pressure 25 bar.

Seal support system
Series SS-420 Quench Panel, Plan 62
VQ-SS420

SS-420

Seal support system, volume Not applicable, once through, pressure 6 bar.

Seal support system

Each one carries its specification table, the variant list with part numbers, the options and the datasheet contents.

What we hold

Seals and Gaskets across the range.

Identification is the job here. A pump serial or a photograph of the nameplate is usually enough to name the seal, the wear rings and the gasket set, so the order does not wait for a drawing nobody can find.

SHAFT
16 to 120 mm
TEMPERATURE
-40 to +400 °C
PRESSURE
to 40 bar
FACES
SiC, carbon, tungsten carbide
Families in this group

What sits under the heading.

  • Component seals to EN 12756
  • Cartridge seals
  • Double seals with barrier systems
  • Gland packing
  • Sheet gaskets
  • Spiral wound gaskets
  • Ring joint gaskets
  • O-rings and cords
  • Seal support systems
Part numbers in this group

The variants behind the two series above.

SE-120, Mechanical seal

PART NUMBERSHAFTFACESELASTOMERARRANGEMENT
VQ-SE120-1016 to 33 mmCarbon against silicon carbideNBRSingle, inside mounted
VQ-SE120-2035 to 60 mmCarbon against silicon carbideEPDMSingle, inside mounted
VQ-SE120-3065 to 100 mmCarbon against silicon carbideFKMSingle, inside mounted

SE-240, Mechanical seal

PART NUMBERSHAFTFACESELASTOMERARRANGEMENT
VQ-SE240-1025 to 45 mmSilicon carbide against silicon carbideFKMSingle cartridge, self setting
VQ-SE240-2050 to 80 mmSilicon carbide against silicon carbideFKMSingle cartridge, self setting
VQ-SE240-3085 to 120 mmSilicon carbide against silicon carbideFFKMSingle cartridge, self setting

SE-360, Mechanical seal

PART NUMBERSHAFTFACESELASTOMERARRANGEMENT
VQ-SE360-1025 to 45 mmSilicon carbide against silicon carbide, both stagesFKMDouble, back to back, pressurised barrier
VQ-SE360-2050 to 75 mmSilicon carbide against silicon carbide, both stagesFFKMDouble, back to back, pressurised barrier
VQ-SE360-3080 to 100 mmSilicon carbide against silicon carbide, both stagesFFKMDouble, back to back, pressurised barrier

SE-480, Mechanical seal

PART NUMBERSHAFTFACESELASTOMERARRANGEMENT
VQ-SE480-1025 to 40 mmSilicon carbide against carbon, food gradeEPDMSingle or double, flush face
VQ-SE480-2045 to 60 mmSilicon carbide against carbon, food gradeEPDMSingle or double, flush face
VQ-SE480-3065 to 80 mmSilicon carbide against carbon, food gradeSiliconeSingle or double, flush face

GK-110, Gasket and packing

PART NUMBERSIZETHICKNESSMATERIALRATING
VQ-GK110-10DN251.5 mmCarbon steelPN40
VQ-GK110-20DN1502.0 mmCarbon steelPN40
VQ-GK110-30DN6003.0 mmCarbon steelPN40

GK-220, Gasket and packing

PART NUMBERSIZETHICKNESSMATERIALRATING
VQ-GK220-10DN254.5 mm1.4404PN100
VQ-GK220-20DN1504.5 mm1.4404PN100
VQ-GK220-30DN6004.5 mm1.4404PN100

GK-330, Gasket and packing

PART NUMBERSIZETHICKNESSMATERIALRATING
VQ-GK330-10DN253.0 mmPFA linedPN16
VQ-GK330-20DN1003.0 mmPFA linedPN16
VQ-GK330-30DN4004.0 mmPFA linedPN16

GK-440, Gasket and packing

PART NUMBERSIZETHICKNESSMATERIALRATING
VQ-GK440-108 mm8 mm1.4404PN25
VQ-GK440-2012 mm12 mm1.4404PN25
VQ-GK440-3020 mm20 mm1.4404PN25

SS-120, Seal support system

PART NUMBERVOLUMEPRESSUREPLANINSTRUMENTATION
VQ-SS120-103 litres10 barPlan 52, unpressurisedSight glass
VQ-SS120-2012 litres10 barPlan 52, unpressurisedSight glass and gauge
VQ-SS120-3024 litres10 barPlan 52, unpressurisedGauge and level switch

SS-240, Seal support system

PART NUMBERVOLUMEPRESSUREPLANINSTRUMENTATION
VQ-SS240-108 litres40 barPlan 53B, bladder pressurisedGauge
VQ-SS240-2020 litres40 barPlan 53B, bladder pressurisedGauge and transmitter
VQ-SS240-3040 litres40 barPlan 53B, bladder pressurisedGauge and transmitter

SS-310, Seal support system

PART NUMBERVOLUMEPRESSUREPLANINSTRUMENTATION
VQ-SS310-102 kW25 barPlan 23, closed circuitThermometer pocket
VQ-SS310-208 kW25 barPlan 23, closed circuitThermometer pocket
VQ-SS310-3018 kW25 barPlan 23, closed circuitThermometer and flow switch

SS-420, Seal support system

PART NUMBERVOLUMEPRESSUREPLANINSTRUMENTATION
VQ-SS420-10Water quench6 barPlan 62, external quenchFlow indicator
VQ-SS420-20Steam quench6 barPlan 62, external quenchFlow indicator and gauge
VQ-SS420-30Nitrogen quench6 barPlan 62, external quenchRegulator and gauge
Next step

Send the duty for this group.

For seals and gaskets we need shaft, temperature, pressure, faces. That is enough for a first selection.
