Instrumentation
Pressure, temperature, level and flow instruments, with the seals, manifolds and thermowells that make them read true.
Published products.
Search and filters run on every published series and part number, read from this site's own product records.

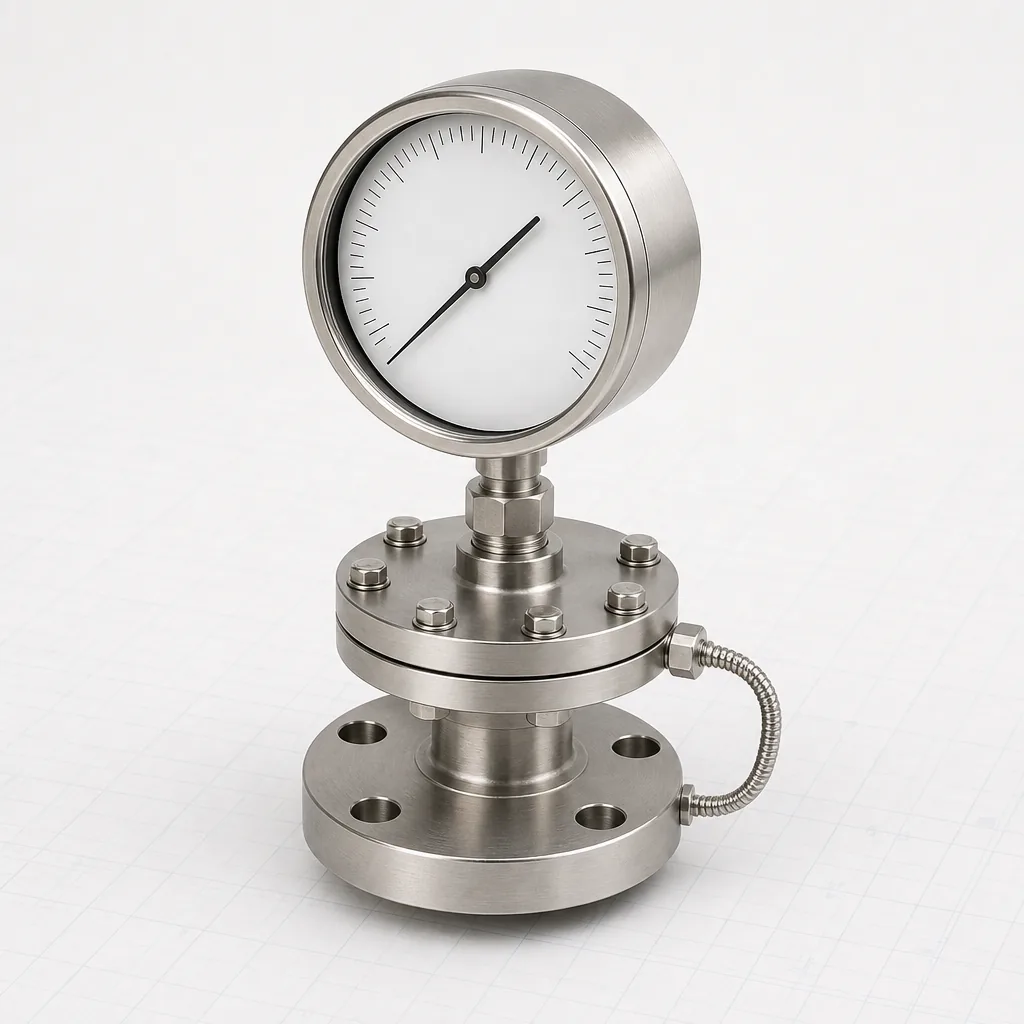

PG-110
Pressure instrument, range 0 to 1 bar up to 0 to 600 bar, accuracy Class 1.0.
PG-210
Pressure instrument, range 0 to 16 mbar up to 0 to 25 bar, accuracy Class 1.6.
PG-320
Pressure instrument, range 0 to 100 mbar up to 0 to 400 bar, accuracy 0.25 per cent of span.
PG-430
Pressure instrument, range Matched to the instrument, connection DN25 to DN100 flanged or threaded.

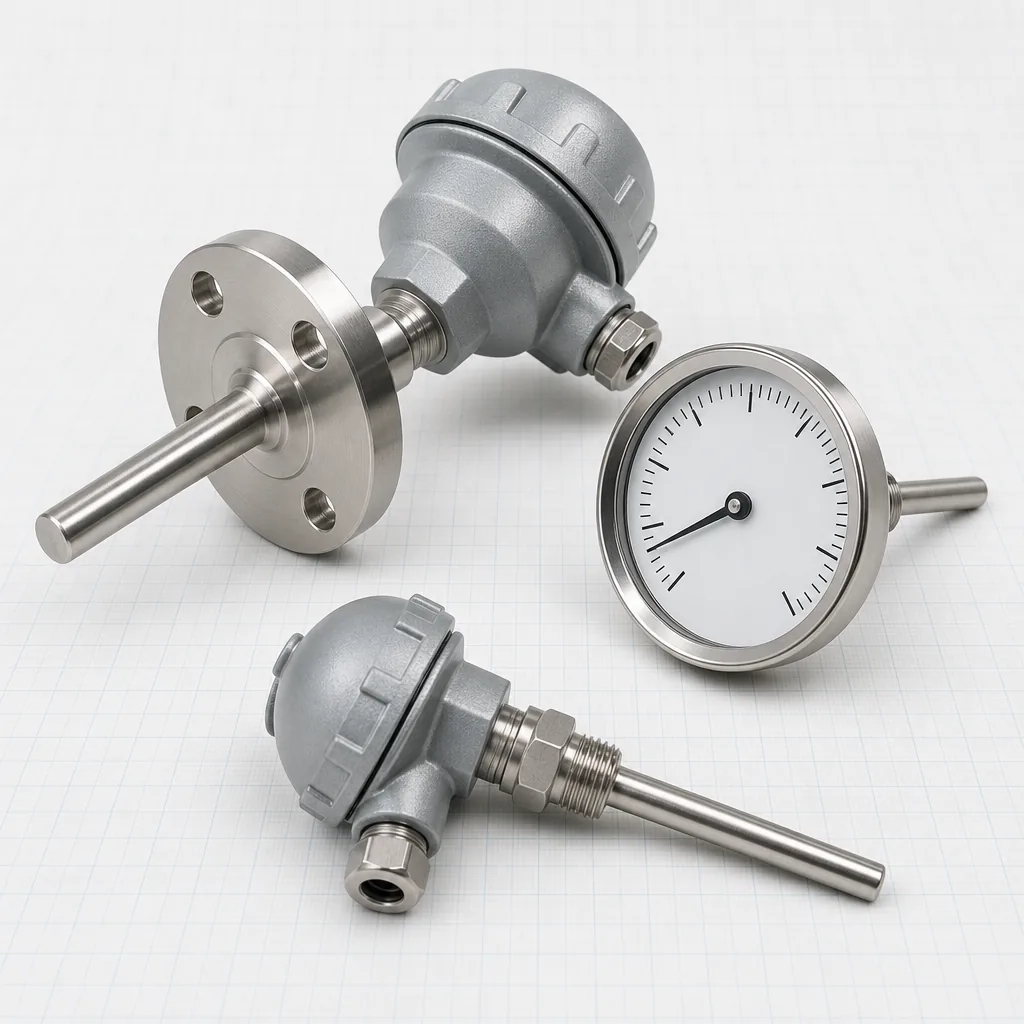

TM-120
Temperature instrument, range -40 to +500 °C, accuracy Class 1 to EN 13190.
TM-240
Temperature instrument, range -50 to +400 °C, accuracy Class A to IEC 60751.
TM-320
Temperature instrument, range To +600 °C, insertion 63 to 1,500 mm.
TM-410
Temperature instrument, range -20 to +300 °C, accuracy 2 per cent of span.

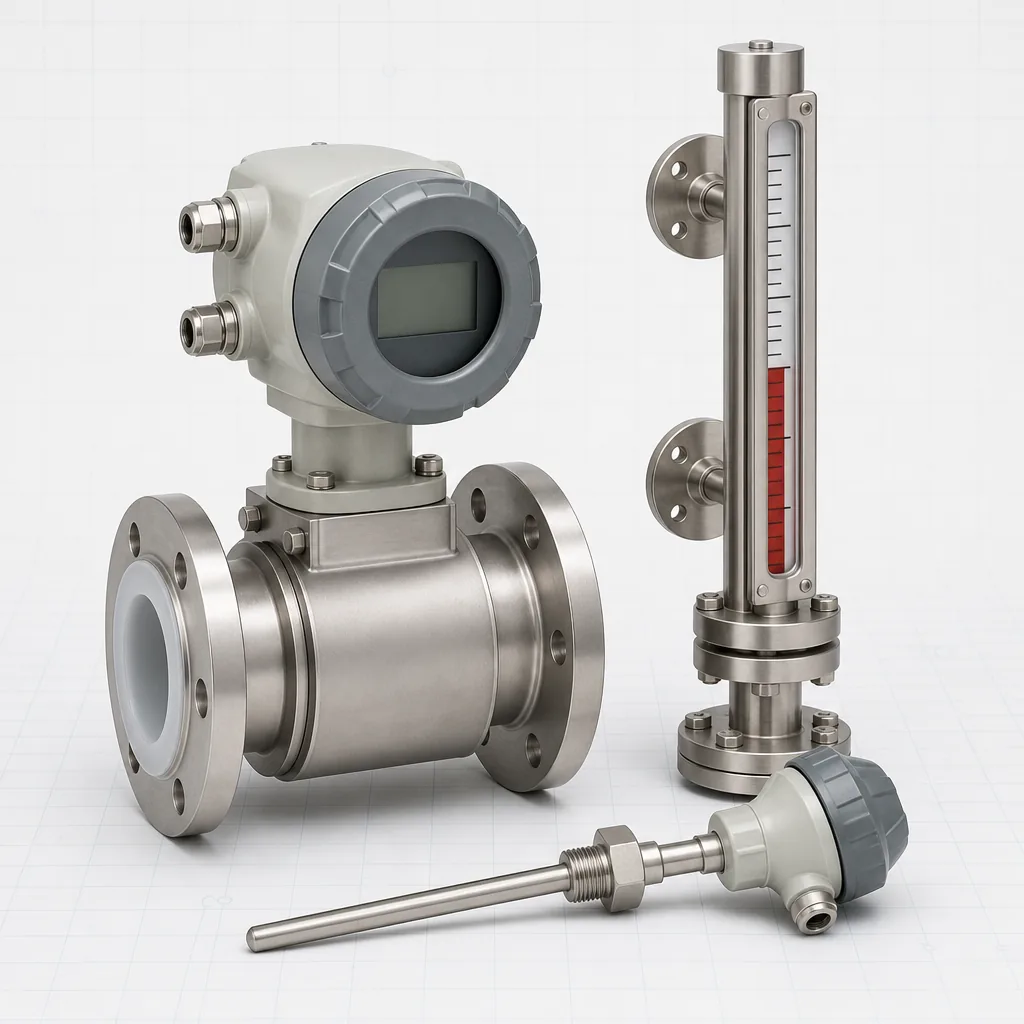

LF-150
Level and flow instrument, range 0.3 to 10 m/s, accuracy 0.4 per cent of reading.
LF-220
Level and flow instrument, range 0.5 to 400 m³/h, accuracy 1.6 per cent of full scale.
LF-310
Level and flow instrument, range 300 to 6,000 mm, accuracy 10 mm.
LF-420
Level and flow instrument, range 0.2 to 30 m, accuracy 2 mm.
Each one carries its specification table, the variant list with part numbers, the options and the datasheet contents.
Instrumentation across the range.

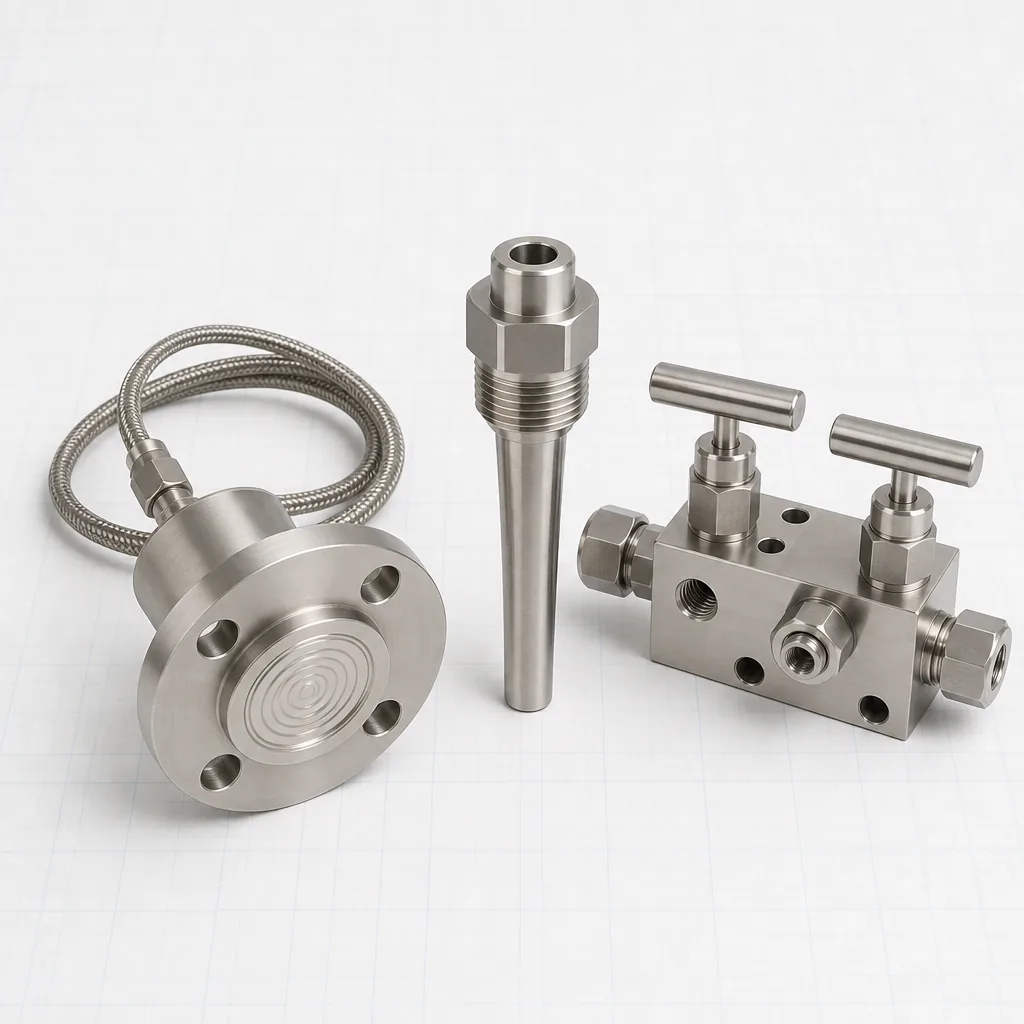

An instrument is only as good as its process connection. The gauge, the seal, the fill fluid and the thermowell are quoted as one item, because a gauge with the wrong seal is a gauge that reads nothing.
- RANGES
- 0 to 600 bar
- TEMPERATURE
- -50 to +500 °C
- CONNECTIONS
- G 1/2 to DN100
- ACCURACY
- Class 1.0 to 0.6
What sits under the heading.
- Bourdon tube gauges
- Diaphragm gauges
- Diaphragm seals
- Instrument manifolds
- Bimetal thermometers
- Resistance thermometers
- Thermowells
- Magnetic level indicators
- Electromagnetic flowmeters
- Variable area flowmeters
- Differential pressure switches
The variants behind the two series above.
PG-110, Pressure instrument
| PART NUMBER | RANGE | CONNECTION | WETTED PARTS | ACCURACY |
|---|---|---|---|---|
| VQ-PG110-10 | 0 to 10 bar | G 1/2 | 1.4571 | Class 1.0 |
| VQ-PG110-20 | 0 to 60 bar | G 1/2 | 1.4571 | Class 1.0 |
| VQ-PG110-30 | 0 to 400 bar | G 1/2 | 1.4571 | Class 1.0 |
PG-210, Pressure instrument
| PART NUMBER | RANGE | CONNECTION | WETTED PARTS | ACCURACY |
|---|---|---|---|---|
| VQ-PG210-10 | 0 to 100 mbar | DN25 | 1.4404 | Class 1.6 |
| VQ-PG210-20 | 0 to 2.5 bar | DN50 | 1.4404 | Class 1.6 |
| VQ-PG210-30 | 0 to 25 bar | DN80 | 1.4404 | Class 1.6 |
PG-320, Pressure instrument
| PART NUMBER | RANGE | CONNECTION | WETTED PARTS | ACCURACY |
|---|---|---|---|---|
| VQ-PG320-10 | 0 to 1 bar | G 1/2 | 1.4435 | 0.25 per cent of span |
| VQ-PG320-20 | 0 to 16 bar | DN25 | 1.4435 | 0.25 per cent of span |
| VQ-PG320-30 | 0 to 400 bar | G 1/2 | 1.4435 | 0.25 per cent of span |
PG-430, Pressure instrument
| PART NUMBER | RANGE | CONNECTION | WETTED PARTS | ACCURACY |
|---|---|---|---|---|
| VQ-PG430-10 | Flush flanged | DN25 | 1.4404 | — |
| VQ-PG430-20 | Flush flanged | DN50 | 1.4404 | — |
| VQ-PG430-30 | Threaded with a capillary | G 1/2 | 1.4404 | — |
TM-120, Temperature instrument
| PART NUMBER | RANGE | INSERTION | CONNECTION | OUTPUT |
|---|---|---|---|---|
| VQ-TM120-10 | -40 to +120 °C | 100 mm | G 1/2 | Dial |
| VQ-TM120-20 | 0 to 250 °C | 250 mm | G 1/2 | Dial |
| VQ-TM120-30 | 0 to 500 °C | 500 mm | Thermowell | Dial |
TM-240, Temperature instrument
| PART NUMBER | RANGE | INSERTION | CONNECTION | OUTPUT |
|---|---|---|---|---|
| VQ-TM240-10 | -50 to +200 °C | 100 mm | G 1/2 | Pt100 |
| VQ-TM240-20 | 0 to 300 °C | 300 mm | Clamp | 4 to 20 mA |
| VQ-TM240-30 | 0 to 400 °C | 800 mm | Flanged | 4 to 20 mA |
TM-320, Temperature instrument
| PART NUMBER | RANGE | INSERTION | CONNECTION | OUTPUT |
|---|---|---|---|---|
| VQ-TM320-10 | Straight | 100 mm | G 1/2 | Bar stock |
| VQ-TM320-20 | Tapered | 300 mm | DN25 flanged | Bar stock |
| VQ-TM320-30 | Stepped | 800 mm | DN40 flanged | Bar stock |
TM-410, Temperature instrument
| PART NUMBER | RANGE | INSERTION | CONNECTION | OUTPUT |
|---|---|---|---|---|
| VQ-TM410-10 | -20 to +100 °C | 100 mm | G 1/2 | One contact |
| VQ-TM410-20 | 0 to 200 °C | 250 mm | G 1/2 | Two contacts |
| VQ-TM410-30 | 0 to 300 °C | 500 mm | Thermowell | Two contacts |
LF-150, Level and flow instrument
| PART NUMBER | SIZE | RANGE | OUTPUT | LINER OR FLOAT |
|---|---|---|---|---|
| VQ-LF150-10 | DN25 | 0.2 to 18 m³/h | 4 to 20 mA | PTFE or hard rubber |
| VQ-LF150-20 | DN80 | 2 to 180 m³/h | 4 to 20 mA | PTFE or hard rubber |
| VQ-LF150-30 | DN300 | 30 to 2,500 m³/h | Modbus | PTFE or hard rubber |
LF-220, Level and flow instrument
| PART NUMBER | SIZE | RANGE | OUTPUT | LINER OR FLOAT |
|---|---|---|---|---|
| VQ-LF220-10 | DN15 | 0.5 to 6 m³/h | Local dial | — |
| VQ-LF220-20 | DN50 | 6 to 60 m³/h | Local dial with a switch | — |
| VQ-LF220-30 | DN150 | 60 to 400 m³/h | Local dial | — |
LF-310, Level and flow instrument
| PART NUMBER | SIZE | RANGE | OUTPUT | LINER OR FLOAT |
|---|---|---|---|---|
| VQ-LF310-10 | 1,000 mm | 0 to 1,000 mm | Flag only | 1.4404 float |
| VQ-LF310-20 | 2,500 mm | 0 to 2,500 mm | Flag with a transmitter | 1.4404 float |
| VQ-LF310-30 | 6,000 mm | 0 to 6,000 mm | Flag with a transmitter | 1.4404 float |
LF-420, Level and flow instrument
| PART NUMBER | SIZE | RANGE | OUTPUT | LINER OR FLOAT |
|---|---|---|---|---|
| VQ-LF420-10 | G 1 1/2 | 0.2 to 10 m | 4 to 20 mA | — |
| VQ-LF420-20 | DN80 | 0.3 to 20 m | 4 to 20 mA | — |
| VQ-LF420-30 | DN150 | 0.4 to 30 m | 4 to 20 mA | — |
Send the duty for this group.
For instrumentation we need ranges, temperature, connections, accuracy. That is enough for a first selection.
