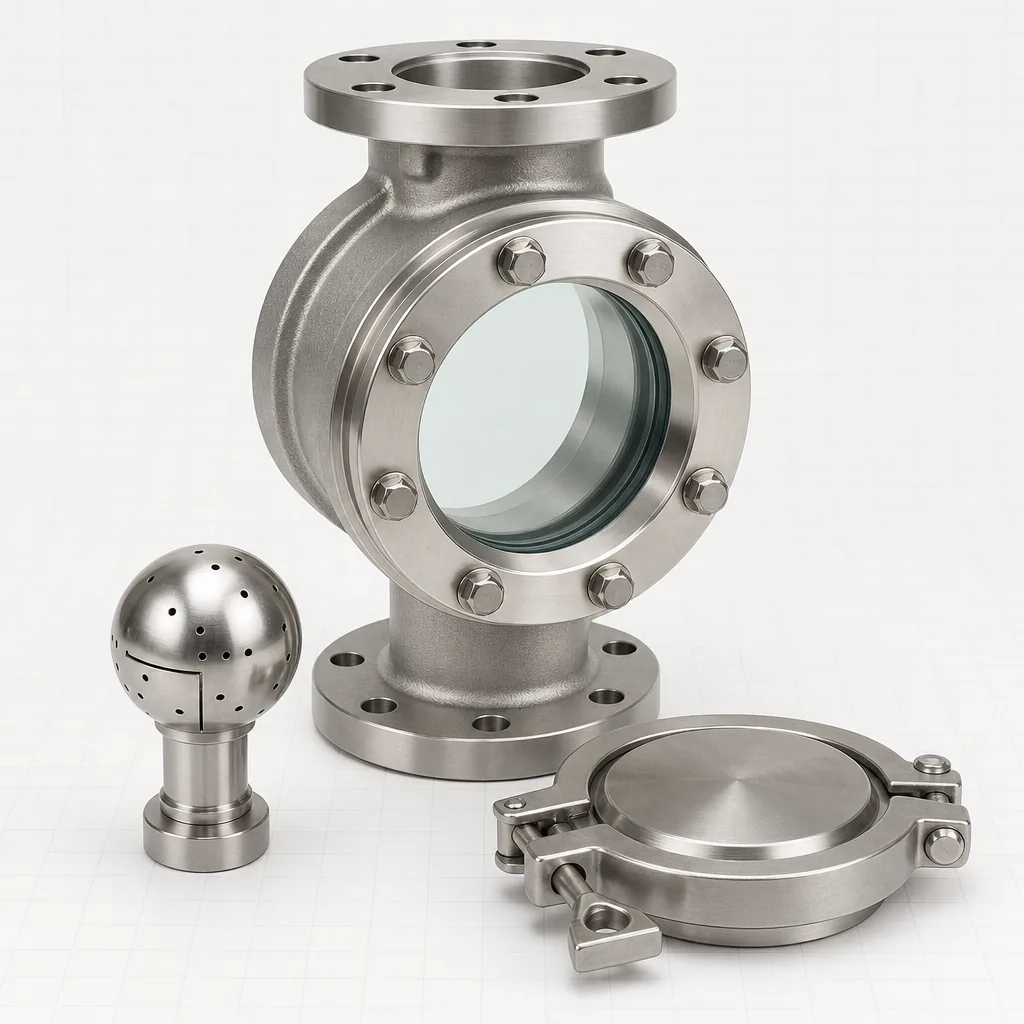

Series VF-220 Rotating Tank Cleaning Head
VQ-VF220
Vessel fitting, sizes DN25 to DN80, rating PN10.
- SIZES
- DN25 to DN80
- RATING
- PN10
- FINISH
- Ra 0.8 micron
- TEMPERATURE
- -10 to +95 °C
Why it is specified
The parts that are specified last and hold up the build. Held in stock in the common sizes and finishes, so the vessel is not waiting on a four-week lead time for a sight glass.
Typical applications
- Sampling from a closed vessel
- Tank cleaning
- Vessel access for maintenance
- Vessel inspection and level sighting
Options and executions
- Electropolished finish with a surface report
- Integral light fitting
- Material certificates to EN 10204 3.1
- Wiper for the window
The full table.
Figures cover the whole series. The variant table below narrows them to a part number.
PERFORMANCE
- Function
- 360 degree cleaning of the vessel interior
- Coverage or view
- Spray radius 1.2 to 4.5 m
- Operating pressure
- 2 to 8 bar
- Cleanability
- Self draining, self cleaning
MATERIALS
- Body
- 1.4404 stainless steel
- Seal
- PTFE bearing, media lubricated
- Surface finish
- Ra 0.8 micron
CONNECTIONS AND RATINGS
- Sizes
- DN25 to DN80
- Connection
- Threaded or clamp
- Pressure rating
- PN10
- Temperature range
- -10 to +95 °C
- Orientation
- Vertical, nozzle downwards
Stocked frame sizes.
| PART NUMBER | SIZE | CONNECTION | SEAL | FINISH |
|---|---|---|---|---|
| VQ-VF220-10 | DN25 | Clamp | PTFE bearing, media lubricated | Ra 0.8 micron |
| VQ-VF220-20 | DN50 | Clamp | PTFE bearing, media lubricated | Ra 0.8 micron |
| VQ-VF220-30 | DN80 | Flanged | PTFE bearing, media lubricated | Ra 0.8 micron |
VF-220, DS-VF-220
The datasheet is issued with the selection rather than downloaded blind, so the figures that arrive are the ones for your duty point. Ask for it with the quotation and it comes back as a PDF.
What is in it
- Selection data and the limits each figure applies at
- Dimensional drawings for every size in the variant table
- Materials of construction and the compatibility notes
- Installation, commissioning and maintenance intervals
- Spare parts list with the part numbers
Elsewhere in the catalogue.
HX-600
Fixed tube sheet shell-and-tube exchanger in stainless steel, for liquid-to-liquid and steam-to-liquid duty on process and utility systems.
AG-350
Flange-mounted top-entry agitator with a helical bevel gear unit and a hydrofoil impeller set, for blending, suspension and heat transfer duty in vessels from 1 to 40 m³.

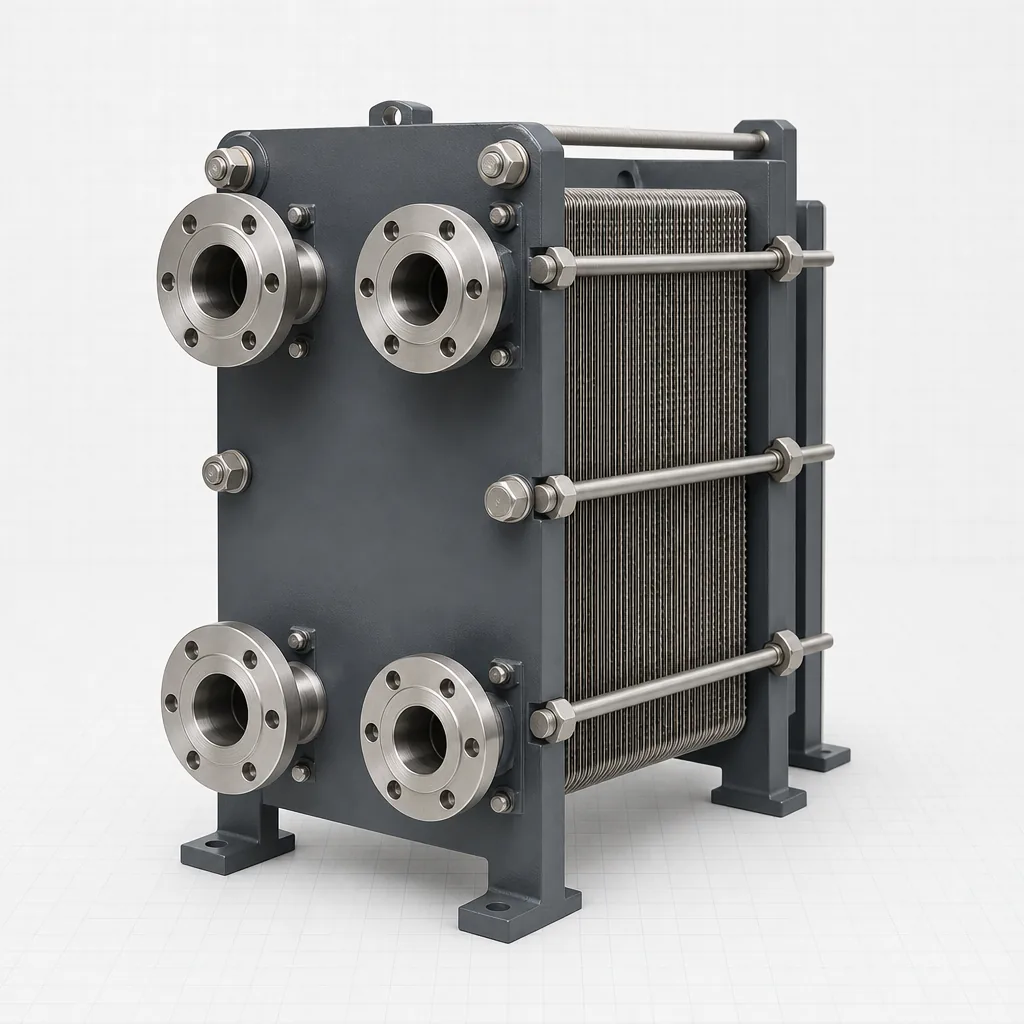

HE-120
