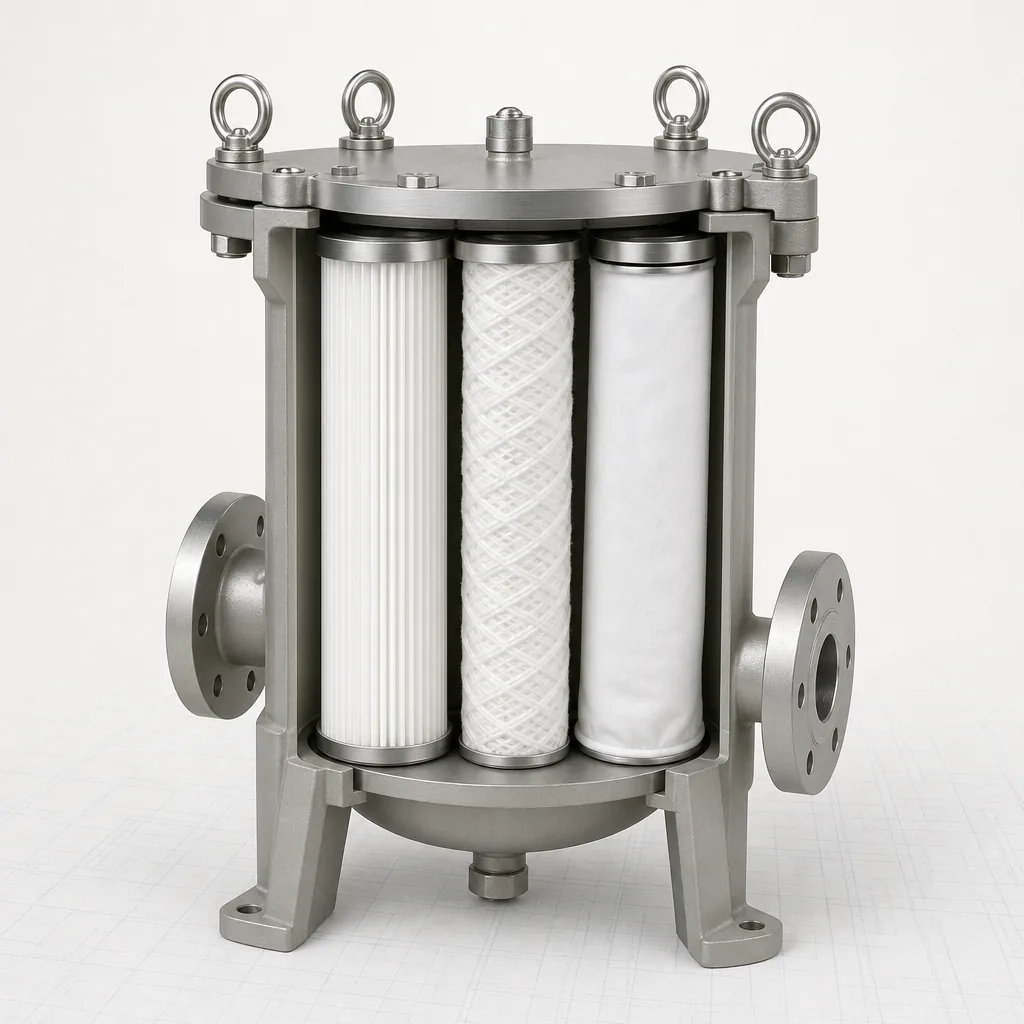

Series EL-320 Sintered Metal Element
VQ-EL320
Filter element, rating 2 to 100 micron, length 10 to 30 inch.
- RATING
- 2 to 100 micron
- LENGTH
- 10 to 30 inch
- EFFICIENCY
- 99 per cent at the rating, absolute
- TEMPERATURE
- -40 to +400 °C
Why it is specified
The element is the specification; the housing is the frame around it. Stocked against the housings we sell, with the micron rating, the efficiency basis and the seal type on the line rather than in a footnote.
Typical applications
- Final filtration before filling
- Pre-filtration ahead of membranes
- Process water polishing
- Solvent clarification
Options and executions
- Alternative end cap adaptors
- Batch traceability documents
- Double length elements
- Rinsed and tested for low extractables
The full table.
Figures cover the whole series. The variant table below narrows them to a part number.
PERFORMANCE
- Filtration rating
- 2 to 100 micron
- Efficiency basis
- 99 per cent at the rating, absolute
- Clean pressure drop
- 0.06 to 0.20 bar
- Maximum differential
- 10 bar differential
- Dirt holding
- Cleanable, back-flushable
MATERIALS
- Media
- Sintered 1.4404 stainless fibre
- Support and cage
- 1.4404 perforated core
- End caps
- 1.4404, welded
- Seal
- FKM or graphite
CONNECTIONS AND RATINGS
- Length
- 10 to 30 inch
- Adaptor
- Code 7 bayonet
- Temperature range
- -40 to +400 °C
- Compatibility
- Fits the FH and CF housings in this catalogue
- Packaging
- Individually boxed
Stocked frame sizes.
| PART NUMBER | RATING | LENGTH | MEDIA | SEAL |
|---|---|---|---|---|
| VQ-EL320-10 | 5 micron | 10 inch | Sintered 1.4404 stainless fibre | FKM or graphite |
| VQ-EL320-20 | 20 micron | 20 inch | Sintered 1.4404 stainless fibre | FKM or graphite |
| VQ-EL320-30 | 100 micron | 30 inch | Sintered 1.4404 stainless fibre | FKM or graphite |
EL-320, DS-EL-320
The datasheet is issued with the selection rather than downloaded blind, so the figures that arrive are the ones for your duty point. Ask for it with the quotation and it comes back as a PDF.
What is in it
- Selection data and the limits each figure applies at
- Dimensional drawings for every size in the variant table
- Materials of construction and the compatibility notes
- Installation, commissioning and maintenance intervals
- Spare parts list with the part numbers
Elsewhere in the catalogue.
FH-400
Stainless steel single-bag filter housing with a swing-bolt closure and an internal restrainer basket, for coarse and medium filtration on process and utility lines.
CF-250
Multi-round cartridge housing with a clamped closure, for fine and final filtration where the element is the specification and the housing is the frame around it.
FH-220
Filter housing, flow 10 to 90 m³/h, rating 1 to 800 micron.
FH-340
Filter housing, flow 20 to 240 m³/h, rating 0.5 to 100 micron.
Quote the EL-320 for your duty.
Send the process data and the line size. The quotation comes back with the selection, the calculation and the lead time on the stocked variants.
Vanteq Industrial is a fictional company created for demonstration purposes. This product does not exist. The specifications, performance figures, materials and datasheet references on this page are illustrative and must not be used to select, size or buy equipment.
