Series PD-430 Progressing Cavity Pump
VQ-PD430
Positive displacement pump, flow 0.5 to 35 m³/h, pressure to 12 bar.
- FLOW
- 0.5 to 35 m³/h
- PRESSURE
- to 12 bar
- VISCOSITY
- 1 to 200,000 mPas
- TEMPERATURE
- -10 to +120 °C
Why it is specified
When the liquid is thick, shear-sensitive or full of solids, a centrifugal pump stops being a pump. These displace a fixed volume per revolution, so flow follows speed and viscosity barely matters.
Typical applications
- Dewatering and filter press feed
- Food and beverage transfer
- Polymer and adhesive feed
- Sludge and slurry transfer
- Viscous product dosing
Options and executions
- Double mechanical seal with flush
- Heating jacket on the pump head
- Pressure relief valve on the head
- Trolley or skid mounting
- Variable speed drive
The full table.
Figures cover the whole series. The variant table below narrows them to a part number.
PERFORMANCE
- Capacity
- 0.5 to 35 m³/h
- Differential pressure
- to 12 bar
- Speed
- 60 to 400 rpm
- Viscosity range
- 1 to 200,000 mPas
- Displacement per revolution
- 0.12 to 1.4 l
- Solids handling
- to 40 mm soft solids
MATERIALS
- Pump head
- 1.4301 stainless steel
- Rotors
- Hardened 1.4021, chrome plated
- Shaft
- 1.4462 duplex stainless steel
- Shaft seal
- Gland packing or single mechanical
- Elastomers
- NBR, EPDM or FKM
CONNECTIONS AND RATINGS
- Inlet and outlet
- DN50
- Connection type
- EN 1092-1 flanged
- Pressure rating
- PN16
- Temperature range
- -10 to +120 °C
- Drive
- Geared motor, foot mounted
Stocked frame sizes.
| PART NUMBER | CONNECTION | CAPACITY | ROTOR | DRIVE |
|---|---|---|---|---|
| VQ-PD430-10 | DN50 | to 12 m³/h | Hardened 1.4021, chrome plated | 1.5 to 4 kW |
| VQ-PD430-20 | DN80 | to 24 m³/h | Hardened 1.4021, chrome plated | 5.5 to 11 kW |
| VQ-PD430-30 | DN100 | to 35 m³/h | Hardened 1.4021, chrome plated | 11 to 22 kW |
PD-430, DS-PD-430
The datasheet is issued with the selection rather than downloaded blind, so the figures that arrive are the ones for your duty point. Ask for it with the quotation and it comes back as a PDF.
What is in it
- Selection data and the limits each figure applies at
- Dimensional drawings for every size in the variant table
- Materials of construction and the compatibility notes
- Installation, commissioning and maintenance intervals
- Spare parts list with the part numbers
Elsewhere in the catalogue.
CP-150
Single-stage, back pull-out end-suction pump to EN 733, for clean and lightly loaded liquids in process, cooling and transfer duty.
MD-80
Close-coupled sealless centrifugal pump with a synchronous magnetic coupling, for aggressive, toxic and expensive media where a dynamic seal is not acceptable.

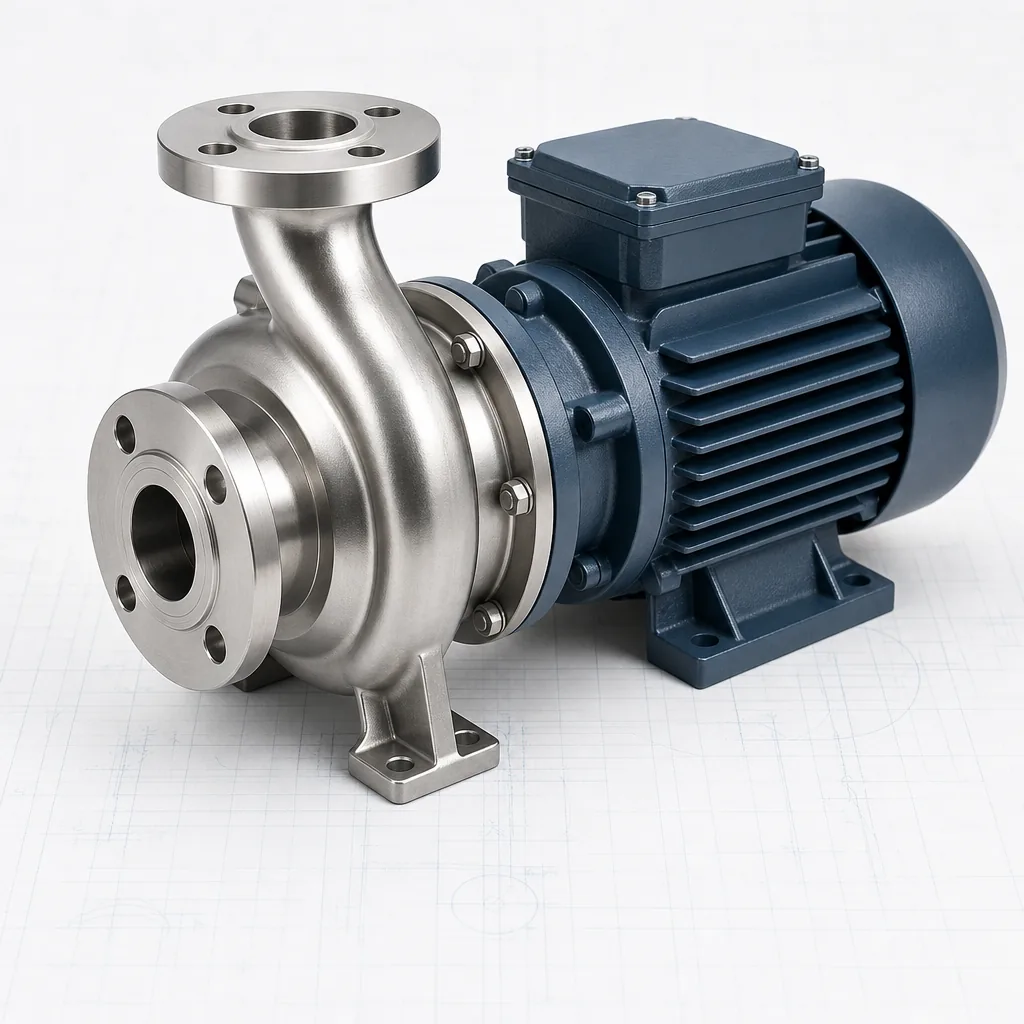

CP-120
