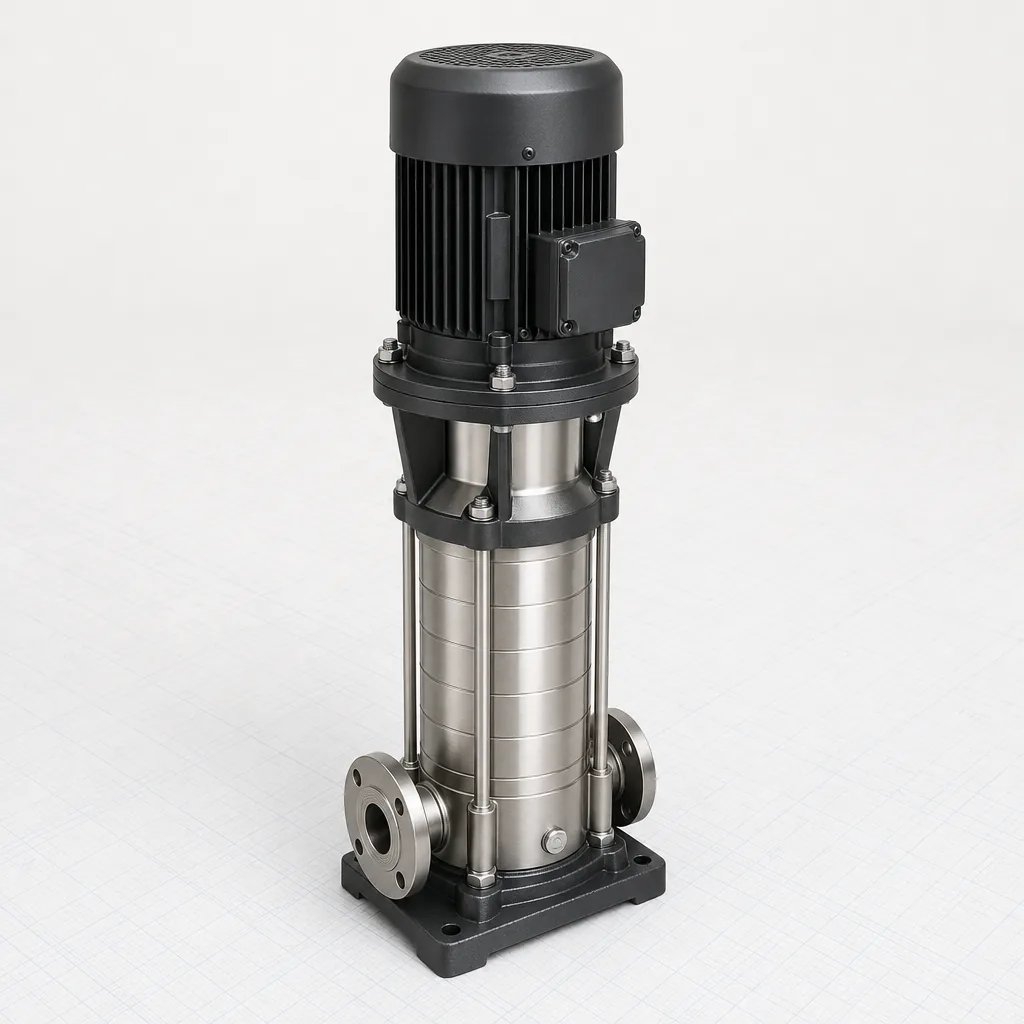

Series MV-345 Vertical Multistage Pump, 45 m³/h
VQ-MV345
Vertical multistage pump, flow 12 to 58 m³/h, head 18 to 190 m.
- FLOW
- 12 to 58 m³/h
- HEAD
- 18 to 190 m
- PRESSURE
- PN40
- STAGES
- 1 to 13
Why it is specified
Pressure without a big footprint: the stages stack vertically, so a fifteen-bar duty occupies the floor area of a bar stool. Specified for boosting, washing and reverse osmosis feed, where the head matters more than the flow.
Typical applications
- Boiler feed
- Industrial water treatment
- Pressure boosting
- Reverse osmosis feed
- Washing and spray systems
Options and executions
- 1.4404 execution for chloride-bearing water
- Dry-run protection
- Pressure vessel and manifold kit
- Stainless base and clamps
- Variable speed drive with pressure set point
The full table.
Figures cover the whole series. The variant table below narrows them to a part number.
PERFORMANCE
- Capacity
- 12 to 58 m³/h
- Differential head
- 18 to 190 m
- Stages
- 1 to 13
- Speed
- 2,900 rpm, 50 Hz
- NPSH required
- 1.8 to 4.4 m
- Motor power
- 4 to 37 kW
MATERIALS
- Chamber stack
- 1.4404 stainless steel
- Impellers
- 1.4404 stainless steel
- Shaft
- 1.4401 stainless steel
- Shaft seal
- Cartridge seal, SiC/carbon/FKM
- Base
- Cast iron, epoxy coated
CONNECTIONS AND RATINGS
- Suction and discharge
- DN80
- Pressure rating
- PN40
- Temperature range
- -15 to +120 °C
- Maximum working pressure
- 40 bar
- Orientation
- Vertical, motor uppermost
Stocked frame sizes.
| PART NUMBER | CONNECTION | STAGES | CAPACITY | MOTOR |
|---|---|---|---|---|
| VQ-MV345-10 | DN80 | 1 to 3 | to 58 m³/h | 4 to 7.5 kW |
| VQ-MV345-20 | DN80 | 4 to 8 | to 58 m³/h | 11 to 22 kW |
| VQ-MV345-30 | DN80 | 9 to 13 | to 58 m³/h | 30 to 37 kW |
MV-345, DS-MV-345
The datasheet is issued with the selection rather than downloaded blind, so the figures that arrive are the ones for your duty point. Ask for it with the quotation and it comes back as a PDF.
What is in it
- Selection data and the limits each figure applies at
- Dimensional drawings for every size in the variant table
- Materials of construction and the compatibility notes
- Installation, commissioning and maintenance intervals
- Spare parts list with the part numbers
Elsewhere in the catalogue.
CP-150
Single-stage, back pull-out end-suction pump to EN 733, for clean and lightly loaded liquids in process, cooling and transfer duty.
MD-80
Close-coupled sealless centrifugal pump with a synchronous magnetic coupling, for aggressive, toxic and expensive media where a dynamic seal is not acceptable.
CP-120
Close-coupled centrifugal pump, flow 2 to 48 m³/h, head 8 to 42 m.
CP-125
Close-coupled centrifugal pump, flow 2 to 60 m³/h, head 8 to 52 m.
Quote the MV-345 for your duty.
Send the process data and the line size. The quotation comes back with the selection, the calculation and the lead time on the stocked variants.
Vanteq Industrial is a fictional company created for demonstration purposes. This product does not exist. The specifications, performance figures, materials and datasheet references on this page are illustrative and must not be used to select, size or buy equipment.
