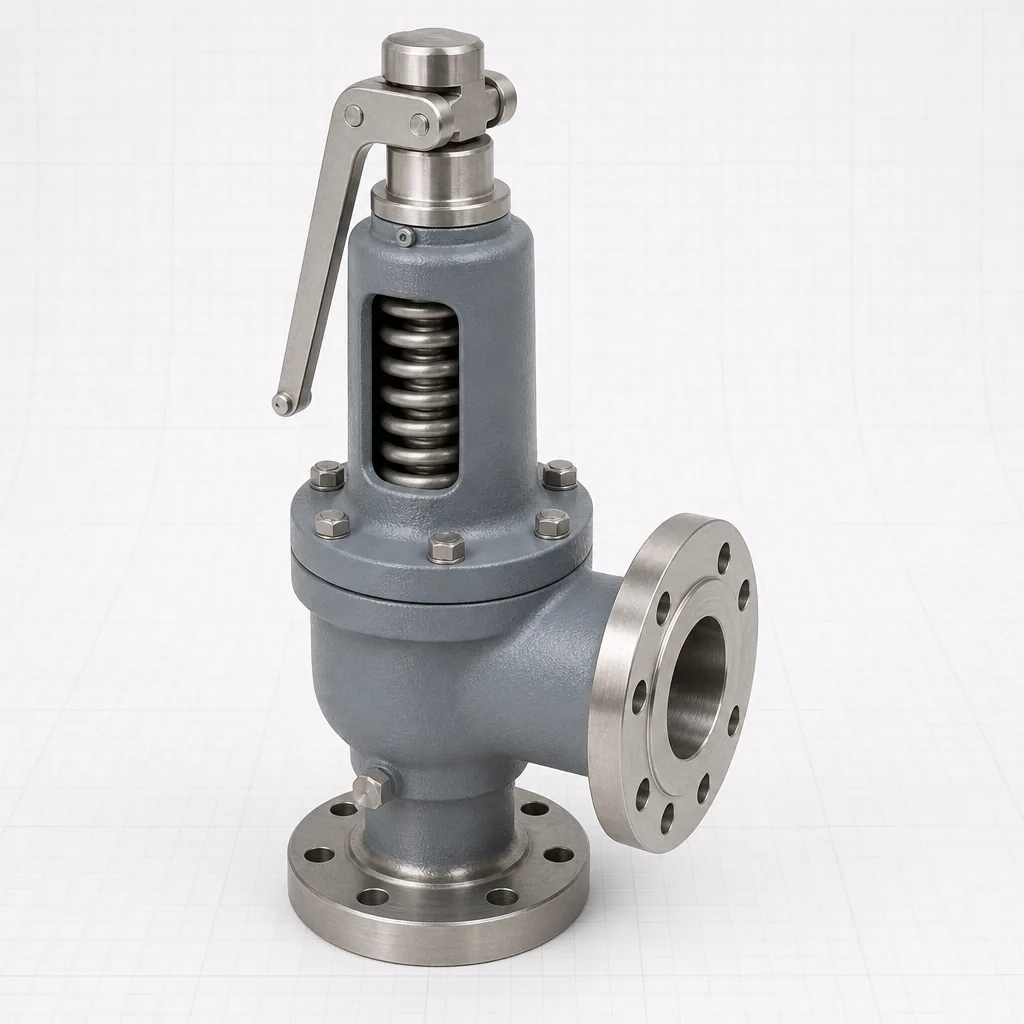

Series CS-150 Spring Safety Relief Valve
VQ-CS150
Check and safety valve, sizes DN20 to DN100, set pressure 0.5 to 40 bar.
- SIZES
- DN20 to DN100
- SET PRESSURE
- 0.5 to 40 bar
- RATING
- PN40
- TEMPERATURE
- -10 to +400 °C
Why it is specified
The valves nobody looks at until the day they matter. Sized on the relieving case rather than on the line, and quoted with the set pressure, the required capacity and the back-pressure assumption stated.
Typical applications
- Compressor protection
- Pump discharge non-return
- Thermal relief on isolated lines
- Vessel and boiler protection
Options and executions
- Bellows for back-pressure
- Lifting lever, plain or packed
- Soft seat for tight shut-off
- Test certificate with the set pressure
The full table.
Figures cover the whole series. The variant table below narrows them to a part number.
PERFORMANCE
- Set pressure range
- 0.5 to 40 bar
- Capacity
- to 42,000 kg/h steam
- Blowdown
- 7 per cent of set pressure
- Seat tightness
- To API 527
MATERIALS
- Body
- 1.4408 stainless steel
- Internals
- 1.4404 nozzle and disc
- Spring
- 1.7102 spring steel, painted
- Seat
- Metal to metal
CONNECTIONS AND RATINGS
- Sizes
- DN20 to DN100
- Connections
- EN 1092-1 flanged, inlet and outlet
- Pressure rating
- PN40
- Temperature range
- -10 to +400 °C
- Mounting
- Vertical, bonnet uppermost
Stocked frame sizes.
| PART NUMBER | SIZE | SET PRESSURE | BODY | SEAT |
|---|---|---|---|---|
| VQ-CS150-10 | DN25 | 0.5 to 16 bar | 1.4408 stainless steel | Metal to metal |
| VQ-CS150-20 | DN50 | 1 to 25 bar | 1.4408 stainless steel | Metal to metal |
| VQ-CS150-30 | DN100 | 1 to 40 bar | 1.4408 stainless steel | Metal to metal |
CS-150, DS-CS-150
The datasheet is issued with the selection rather than downloaded blind, so the figures that arrive are the ones for your duty point. Ask for it with the quotation and it comes back as a PDF.
What is in it
- Selection data and the limits each figure applies at
- Dimensional drawings for every size in the variant table
- Materials of construction and the compatibility notes
- Installation, commissioning and maintenance intervals
- Spare parts list with the part numbers
Elsewhere in the catalogue.
GV-200
Top-guided single-seat globe valve with a multi-spring diaphragm actuator and a digital positioner, for modulating control on liquid, gas and steam.
BF-300
Wafer and lugged resilient-seated butterfly valve with a moulded liner, bi-directional and bubble tight to the full rating, for isolation on water, air and neutral media.
GV-120
Pneumatic control valve, sizes DN15 to DN50, kvs 0.4 to 40 m³/h.
GV-240
Pneumatic control valve, sizes DN25 to DN150, kvs 8 to 200 m³/h.
Quote the CS-150 for your duty.
Send the process data and the line size. The quotation comes back with the selection, the calculation and the lead time on the stocked variants.
Vanteq Industrial is a fictional company created for demonstration purposes. This product does not exist. The specifications, performance figures, materials and datasheet references on this page are illustrative and must not be used to select, size or buy equipment.
